Garage wall systems

The wall is the most under-used surface in nearly every garage, and it is the hardest category to compare — not because the information is missing, but because every manufacturer publishes it in a different unit.

Gladiator publishes per linear foot. Proslat publishes per square foot. Wall Control publishes per panel and per hook. Those are four incomparable numbers describing four incomparable things, and it is why people give up and buy on appearance.

The translation

Applied to a notional 4 ft by 4 ft section of wall — 16 square feet, 4 linear feet across — Gladiator GearTrack's 75 lb per linear foot is 300 lb per horizontal run; Proslat's 75 lb per square foot is 1,200 lb across the panel; GearWall's 50 lb per square foot is 800 lb.

Two things fall out of that, and they are the whole hub:

• Per-square-foot numbers look enormous and are not. 1,200 lb across a panel is a distributed figure. It is not permission to hang a 300 lb point load from one hook. Distributed and point loads are different engineering cases.
• Pegboard's real limit is the hook. Wall Control publishes 200 lb per panel into studs — and 10 to 15 lb per hook engaging two slots. You hit the hook limit twenty times before the panel notices, which is why pegboard is a hand-tool wall rather than a bike wall.

The full working is on how much weight a garage wall holds.

Three formats, three jobs

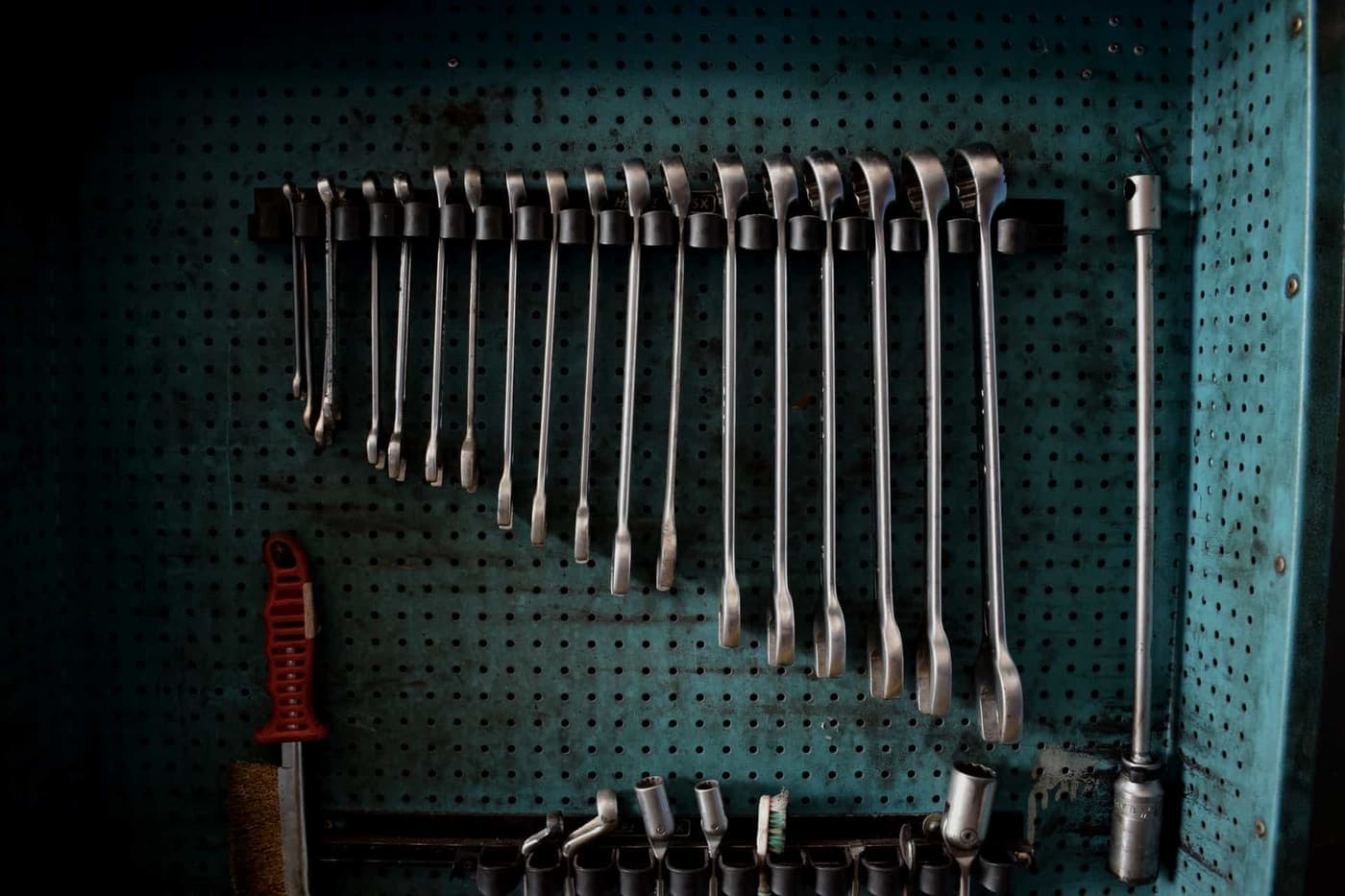

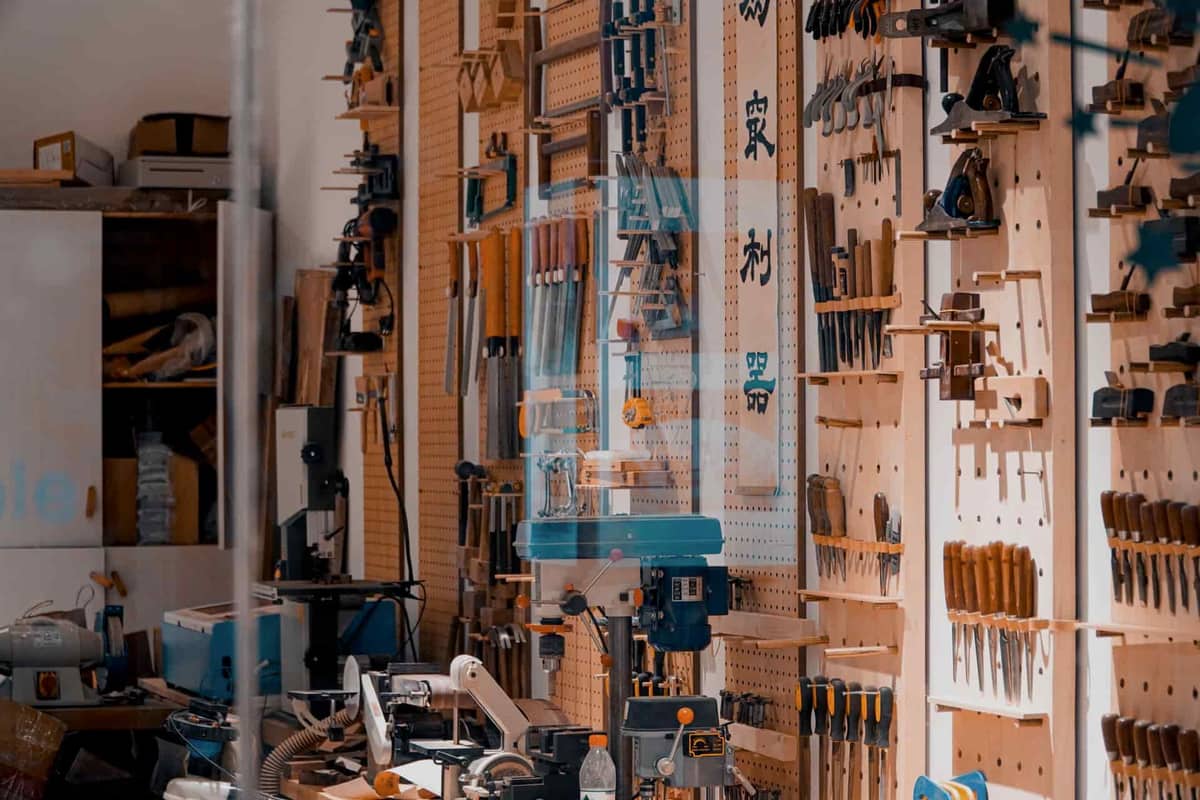

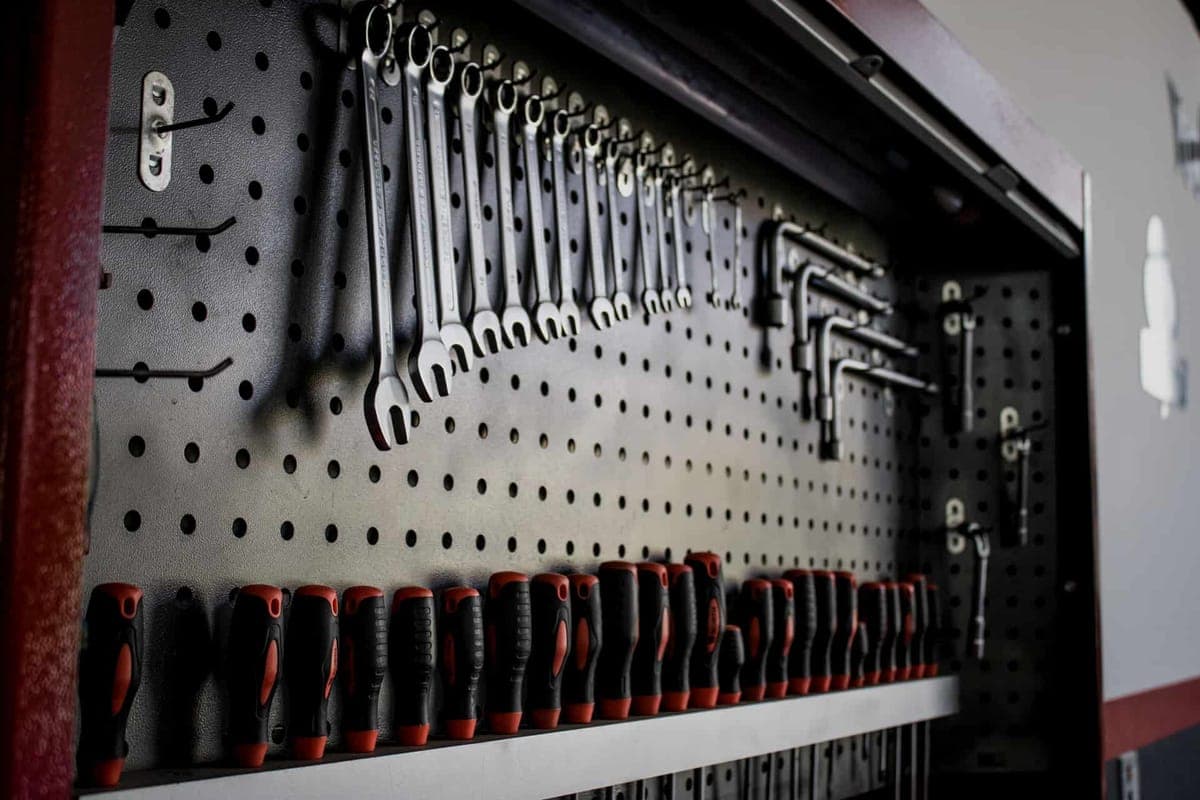

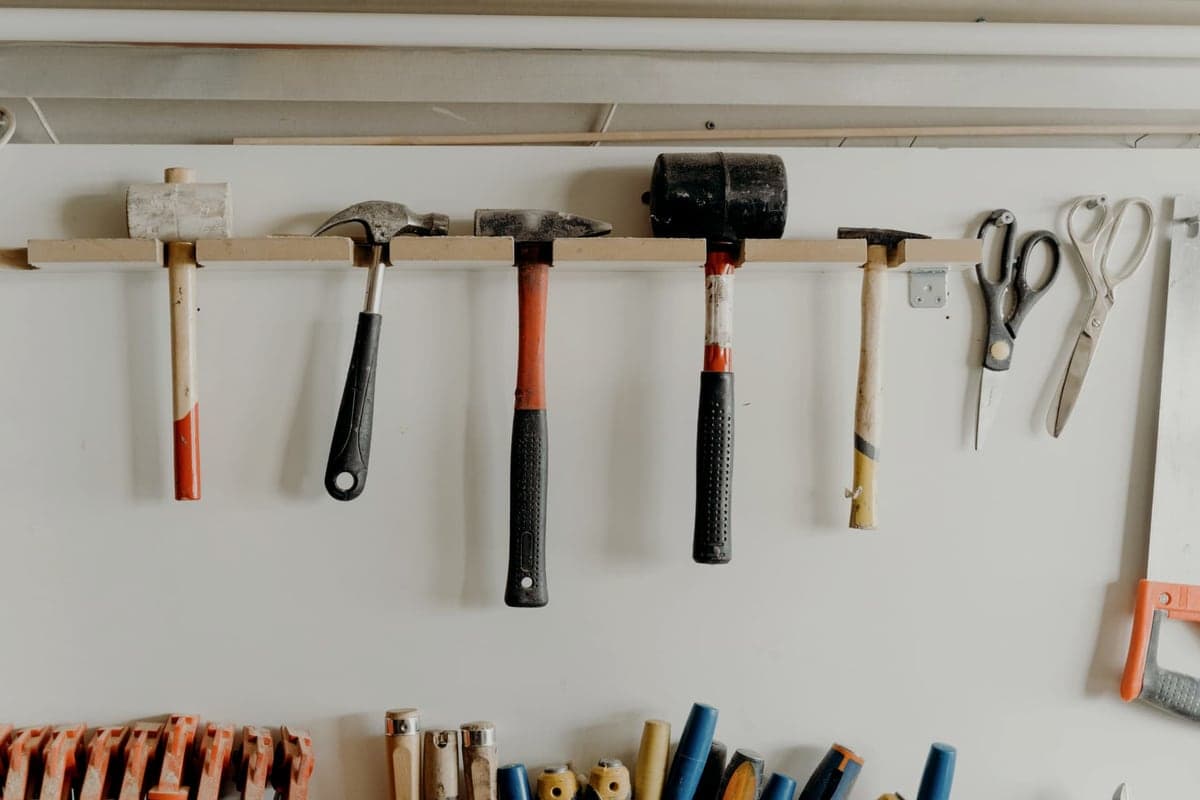

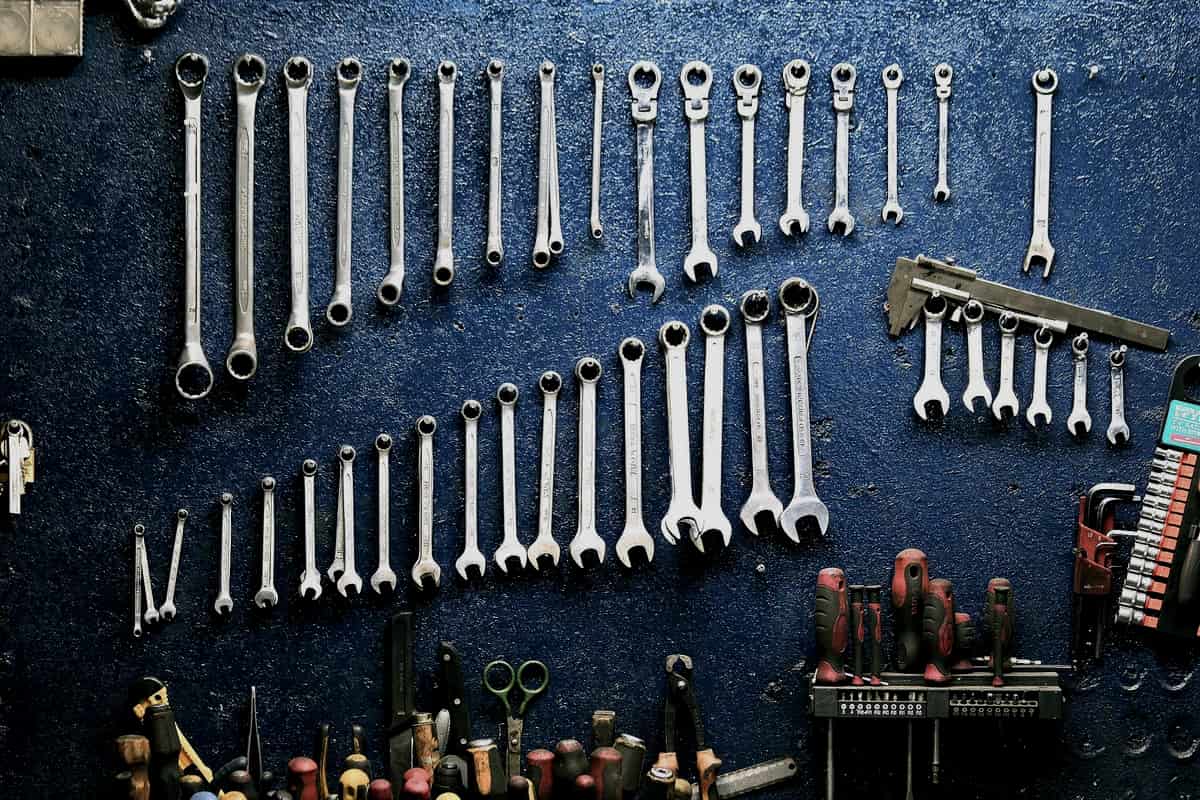

Pegboard is for hand tools

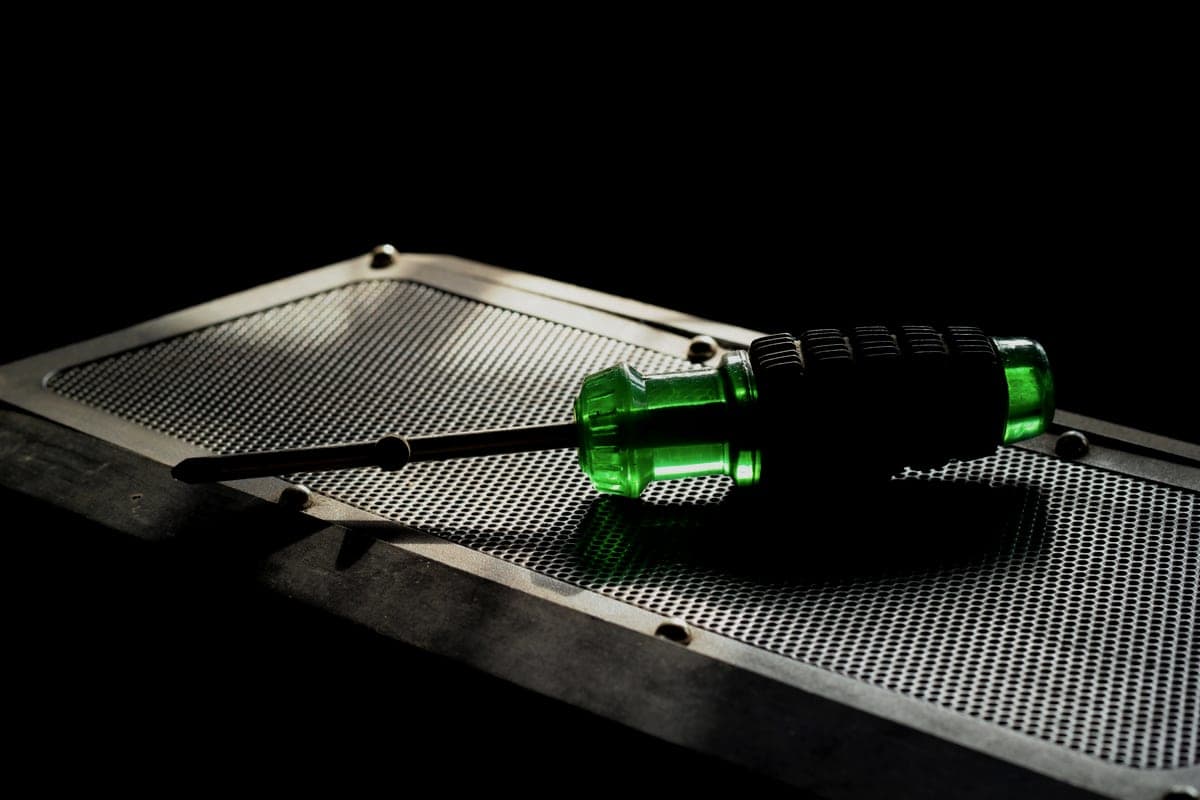

Cheapest per square foot of wall by a wide margin. Buy metal rather than hardboard — 20-gauge steel does not bow and its holes do not blow out, which is the failure mode that makes most people's first pegboard experience a bad one.

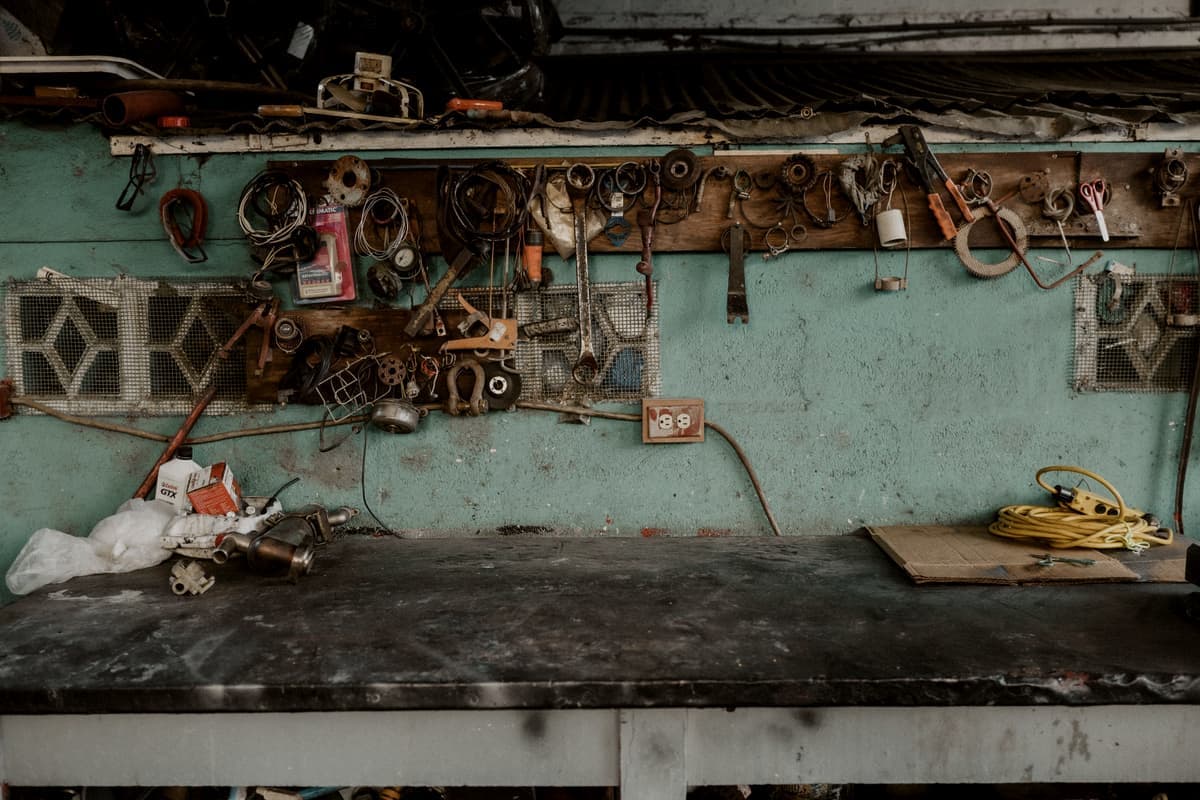

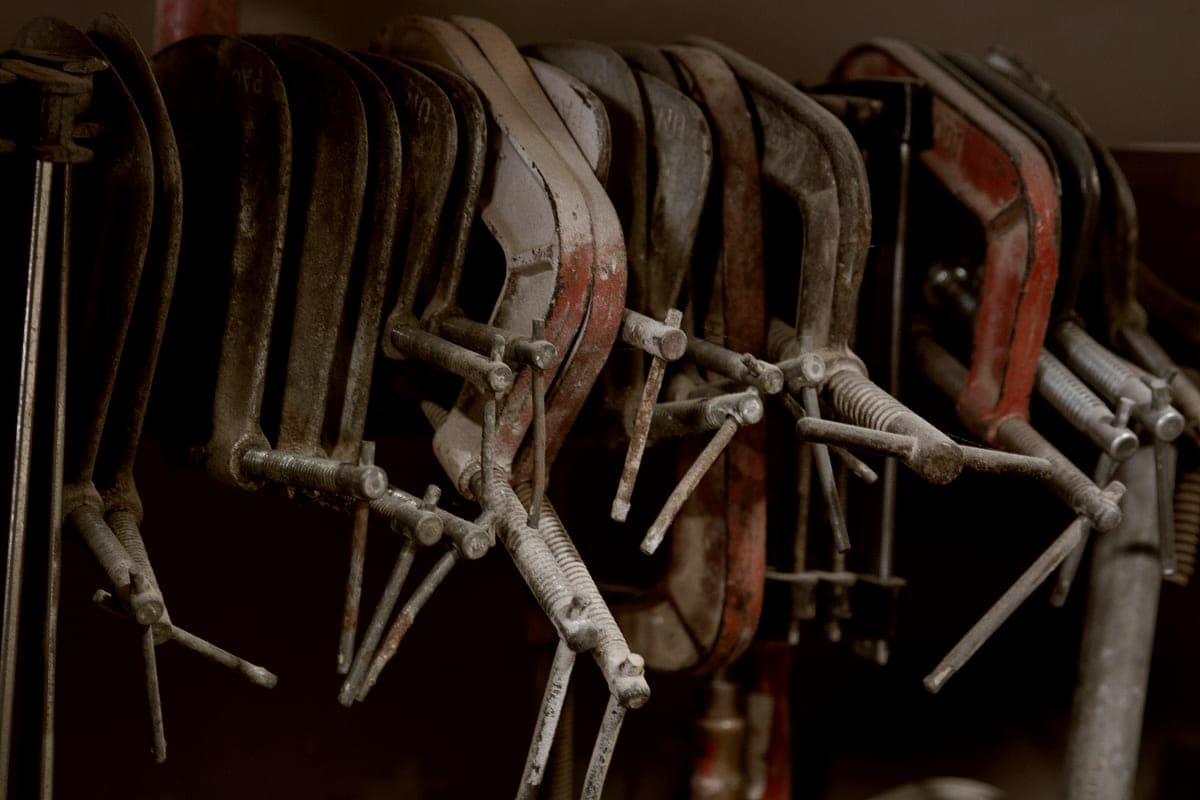

Track is for heavy things

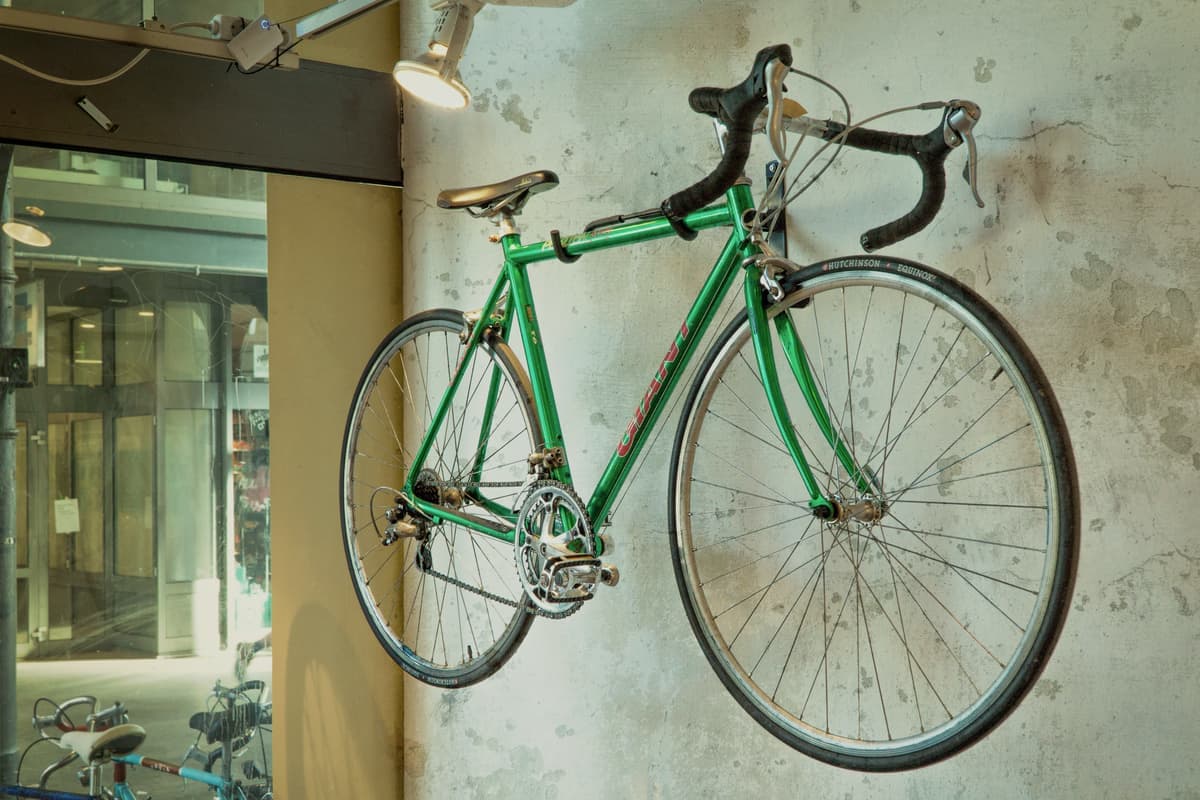

75 lb per linear foot is the highest rate here, and track covers only the strip of wall you need rather than the whole thing. Two runs handle bikes, ladders and long-handled tools for a fraction of what paneling costs.

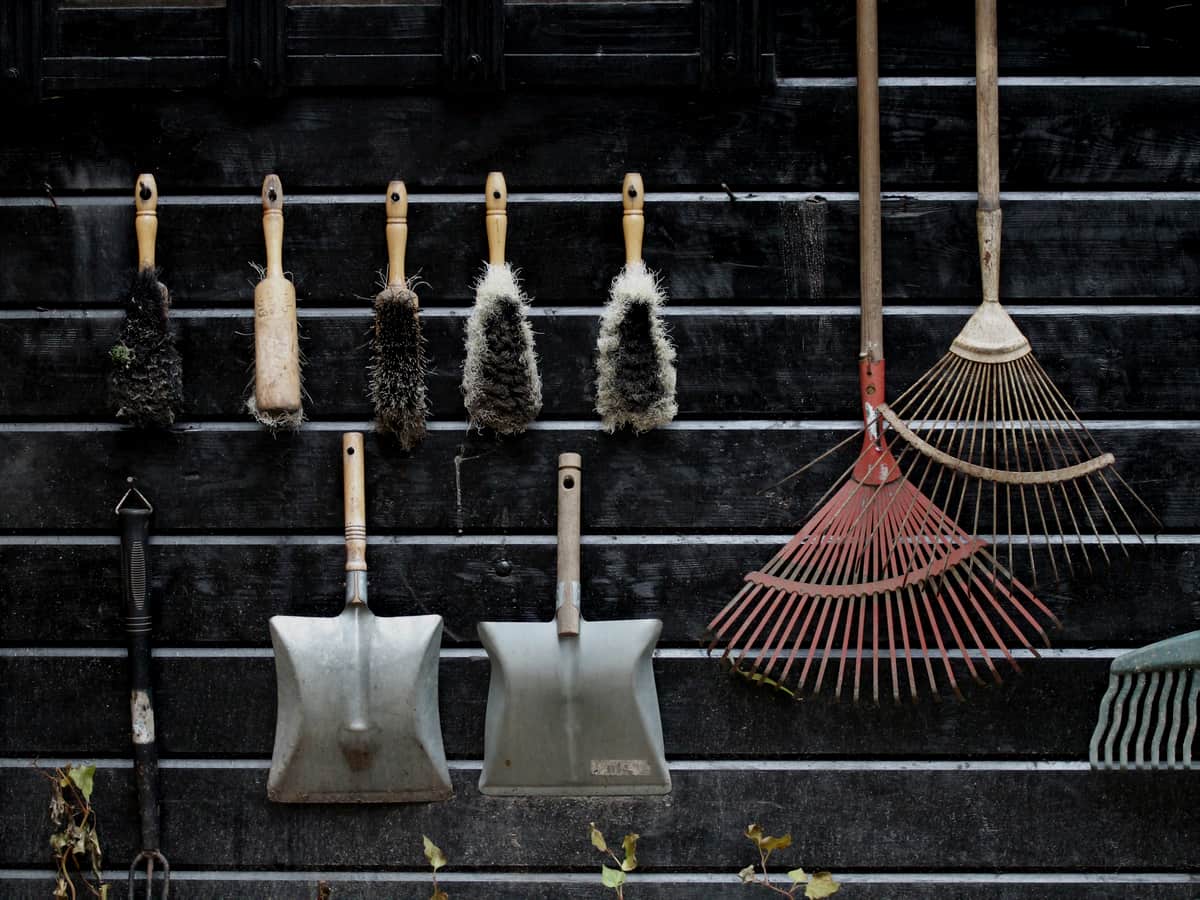

Panels are for a wall that keeps changing

Hang anything at any height rather than only on a line. Worth paying for when the wall's contents rotate — sports gear and kids' gear are the clearest cases — and not worth it when you already know the wall holds six things.

In an unheated garage, buy PVC rather than MDF. Proslat publishes 75 lb per square foot with a lifetime warranty, and PVC does not swell through a humidity swing the way MDF does. Check your stud spacing first: Proslat publishes installation to 16 inch studs.

Most garages want two of these

Not one format across the whole garage. A pegboard panel above the bench for hand tools, and two runs of track on the long wall for bikes and ladders. That combination costs less than paneling the wall and does each job with the right hardware — the layout is on how to organize a garage wall.

When a wall system is the wrong answer

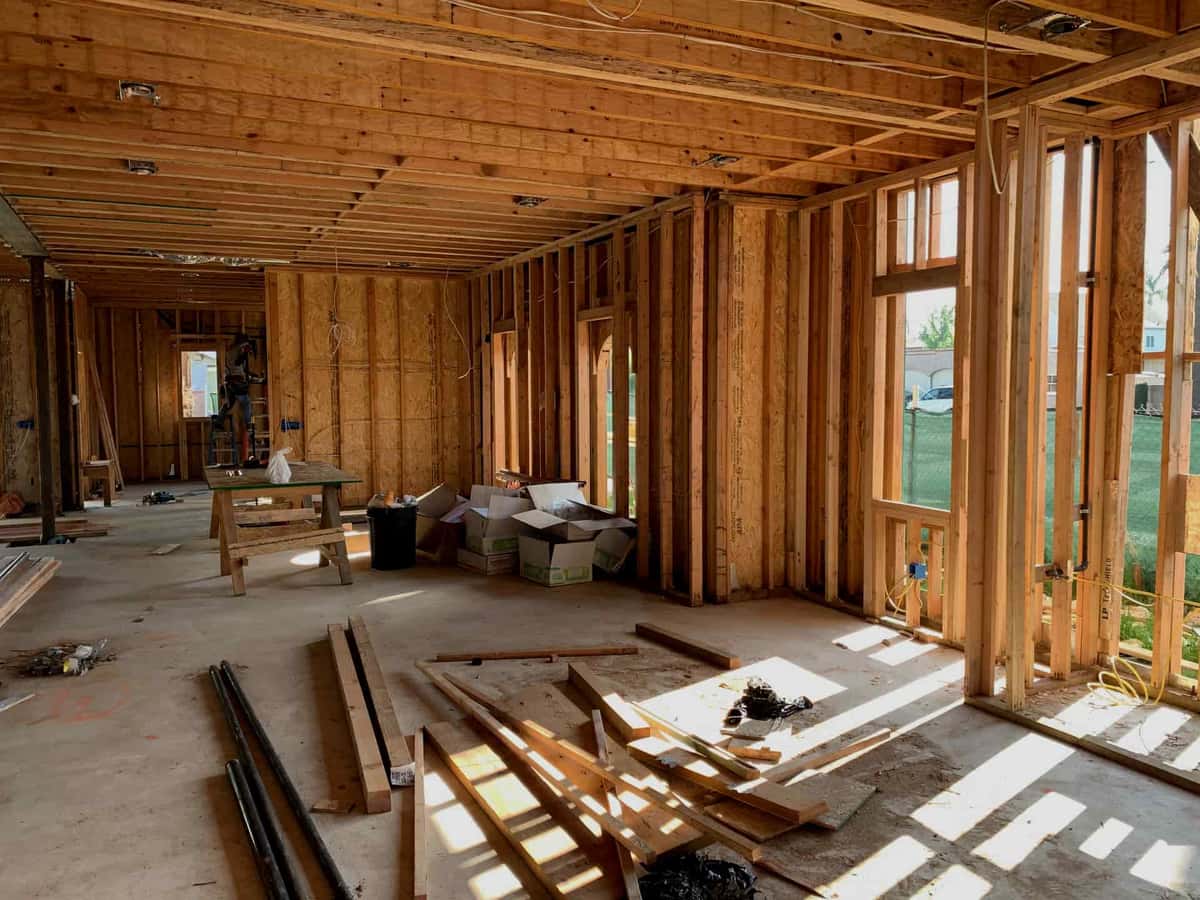

• Masonry or block walls. Every published figure here assumes timber studs and none of them transfer.
• Bins and totes. Those want a shelf or an overhead rack.
• Anything that needs locking away. An open wall is open — that is a cabinet job.
